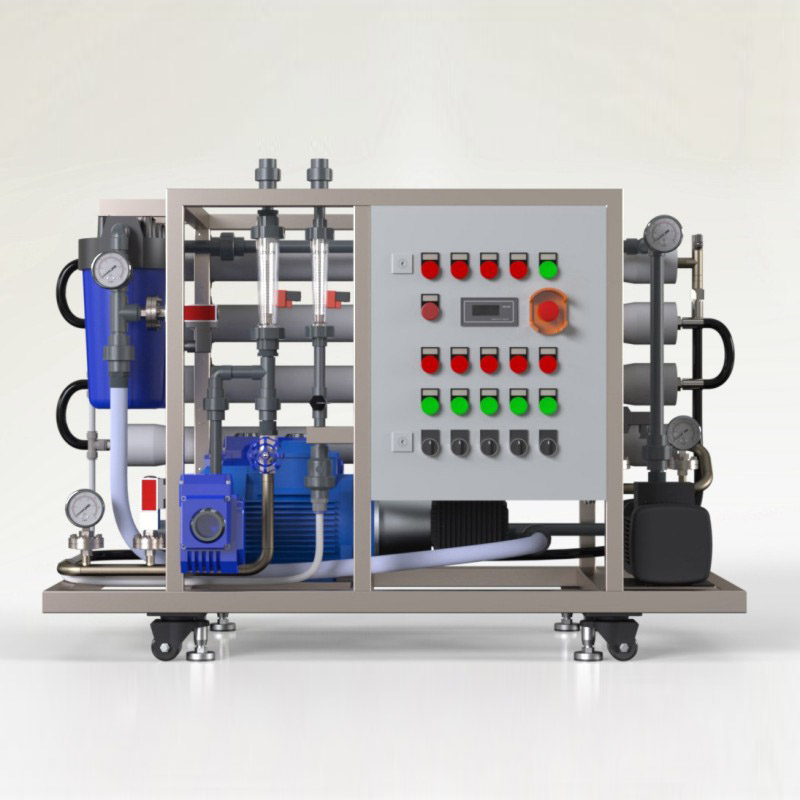

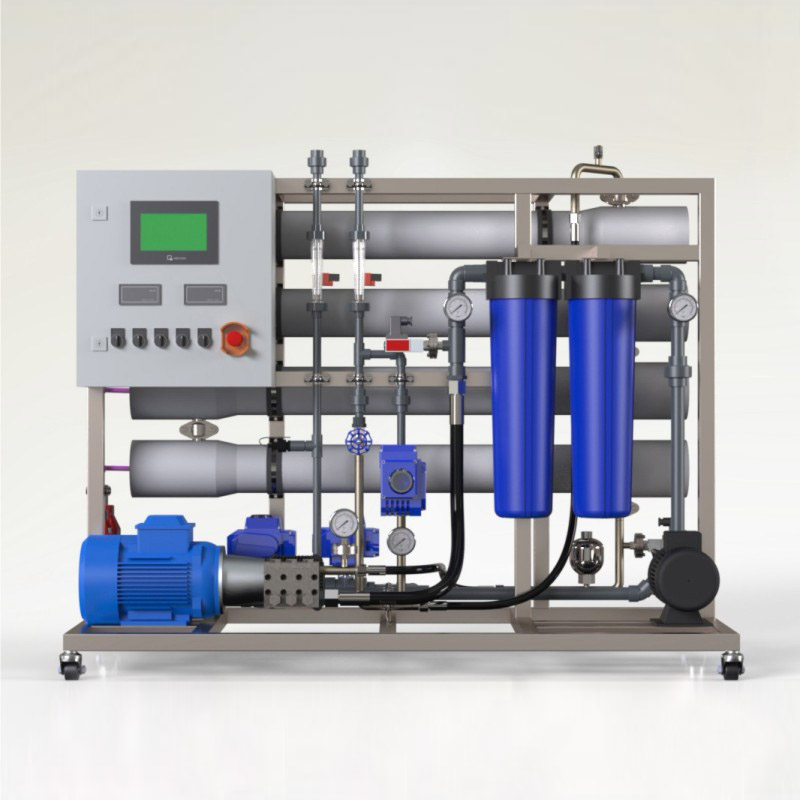

SW-S Series

SW-S series are available with capacities ranging from 400 GPD-1600 GPD.Designed to convert seawater to drinking water,these systems use our proven technology to give reliable performance and meet the demanding requirements of the marine environment.By using high quality reverse osmosis seawater  membranes in the water purification process,the compact design makes the systems ideal for use on yachts,boats,cruise ships,and resorts.


Features:


✦ Auto start-up flush

✦ Slow Start-up pressure build up

✦ Auto Shutdown & Permeate Water Flush

✦ Auto Shut-down flush water replacement

✦ Auto Shut-down pressure release

✦ RO low pressure/high pressure protection

✦ Pumps and valves switching smoothly

✦ SS304 Skid with automobile grade coating

✦ SS304 control panel with automobile grade coating

✦ Auto and manual 2 modes operation

✦ With pulsation dampener

✦ Diaphragm isolation seals for pressure switches

✦ Diaphragm isolation seals for high pressure gauges

✦ Permeate and concentrate water low flow protection



Benifits


✦ Fully Equipped and Customizable

✦ Individually Tested and preserved

✦ Expandable and Skid Mounted

✦ Low Operation and Maintenance Costs

✦ Components Easily Accessible

✦ Easy Maintenance and Servicing

✦ Pre-Plumbed Wired and Assembled

✦ 3-Year Limited Warranty


Pleated filter

✦ Housing---4.5" *10"

✦ Quantity---2pcs

✦ Sediment filter---4.5" *10" ; 5&1micron


Membrane Elements and Housings

✦ Membrane model---SW30-2540

✦ Membrane manufacturer---Filmtec/CSM

✦ Housing Spec.--- FRP,1000psi,Side port


Feed/Flush Pump

✦ Pump Material---SS 316

✦ Pump Brand ---CNP


High Pressure Pump

✦ Pump Material--- SS316

✦ Pump Brand ---AR


Connection Port

✦ Feed Inlet Port

✦ Permeate Port

✦ Drain Port


Control system

✦ Timer and relay based control

✦ Timer adjustable

✦ Tank level control

✦ Low pressure/High pressure protection

✦ Auto feed water and fresh water flush

✦ Unqualified water signal shut off function backup


Motorized valve

✦ Feed Water Valve---UPVC;10bar

✦ Fresh Water Inlet Valve(for flush)---UPVC;10bar

✦ Fresh Flush outlet Valve(for flush)---SS2205;128bar


Material of Construction

✦ High-pressure pipeline---SS2205 and flexible hose

✦ Low-pressure piping---UPVC

✦ Frame---SS304 automobile grade coating

✦ Control box---IP54(SS304 automobile grade coating)


Instrumentation

✦ Flow meters--- Permeate,concentrate

✦ Conductivity--- Permeate

✦ Pressure gauge--- Pre-filter,post-filter,pump discharge,concentrate

✦ Pressure switch--- Feed,RO membrane inlet


Options or Upgrades

✦ PLC control

✦ HMI Touch Panel

✦ Ethernet on-line monitor and control

✦ Anti-scalant Dosing System

✦ PH Meter

✦ Clean-in-Place(CIP) ports

✦ Feed Water Conductivity Meter

✦ Pretreatment system


Documentation Included

✦ Operation and maintenance manual

✦ Drawings:P&ID,Electrical diagram


Working Conditions




Treatment ability and working pressure of the RO system are dependent on feed water quality.

Nominal permeate rate listed at temperature 25℃，Permeate rate can be reduced by up to 20% as temperature drops.

Naida Seawater RO systems are available in a variety of voltages.Please select the desired voltage code as below.

The three-digit code will be added to the end of the Seawater RO system Model number.

Example：SW-S-400(116)=110V/1Ph/60Hz.

Voltage Codes(available for all models) :

-116 =110V/1Ph/60Hz

-216=220V/1Ph/60Hz

-215=220V/1Ph/50Hz

-235=220V/3Ph/50Hz

-236=220V/3Ph/60Hz

-335=380V-420V/3Ph/50Hz

Remark:All weight and dimensions are approximate.Other custom designs are available upon request.
