CO-P Series

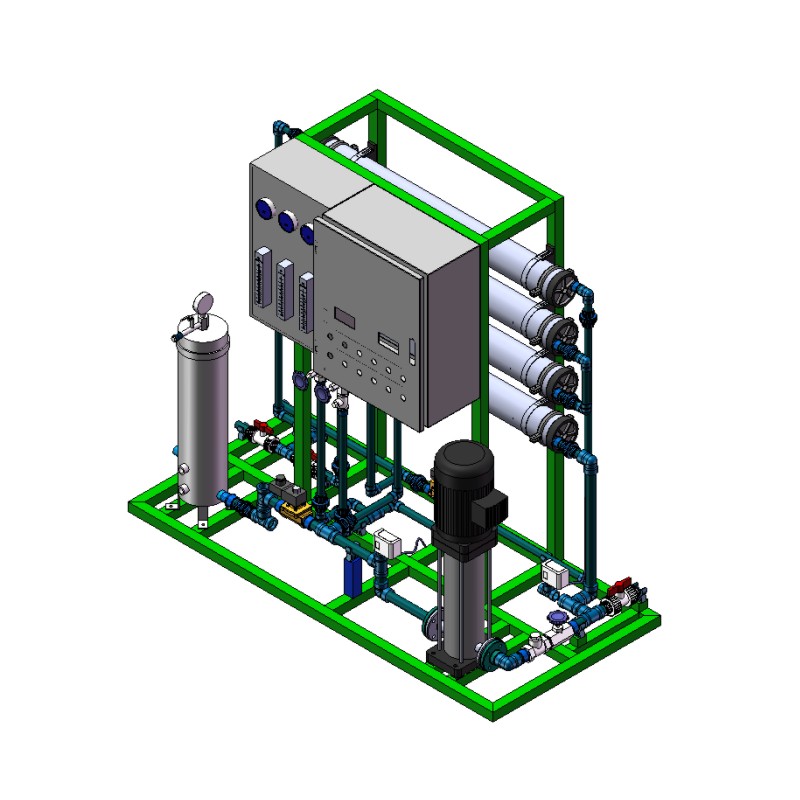

CO-P Series Reverse Osmosis Systems cover a wide range production from 1500 to 18000GPD with easy installation and low maintenance. System is high quality components designed and 100% factory & industry tested.Years of trouble free service offered.

Description
Parameter

Standard Features:

✦ Stainless Steel 304 Frame

✦ Sand Filter FRP Tank with Mechanical Control Valve

✦ Carbon Filter FRP Tank with Mechanical Control Valve

✦ Water Softener FRP Tank with Mechanical Control Valve

✦ Thin Film Composite Membranes

✦ Stainless Steel 304 RO Vessels Seamless

✦ Horizontal Feed Pump

✦ Vertical High Pressure Pumps

✦ PLC Control

✦ Power On/Off Switch

✦ 5 Microns Pre-filter

✦ Production Water Flow Meter

✦ Concentrate Water Flow Meter

✦ High Pressure Pump Inlet Pressure Gauge

✦ High Pressure Pump Outlet Pressure Gauge

✦ Concentrate Outlet Pressure Gauge

✦ Low Pressure Switch

✦ High Pressure Switch

✦ Heavy-duty PVC Piping

✦ Level Control On/Off

✦ Automatic Flush

✦ Low Pressure Shut-Off

✦ Optional UV Sterilizer,Ozone and SS Jacket

NOTE:110V/60Hz and 220V/50Hz Available.Standard Poly-Wood Package.

Remark:All weights and dimensions are approximate.Other custom designs are available upon request.Valves listed above don't refer particularly to any models or manuafactures.
