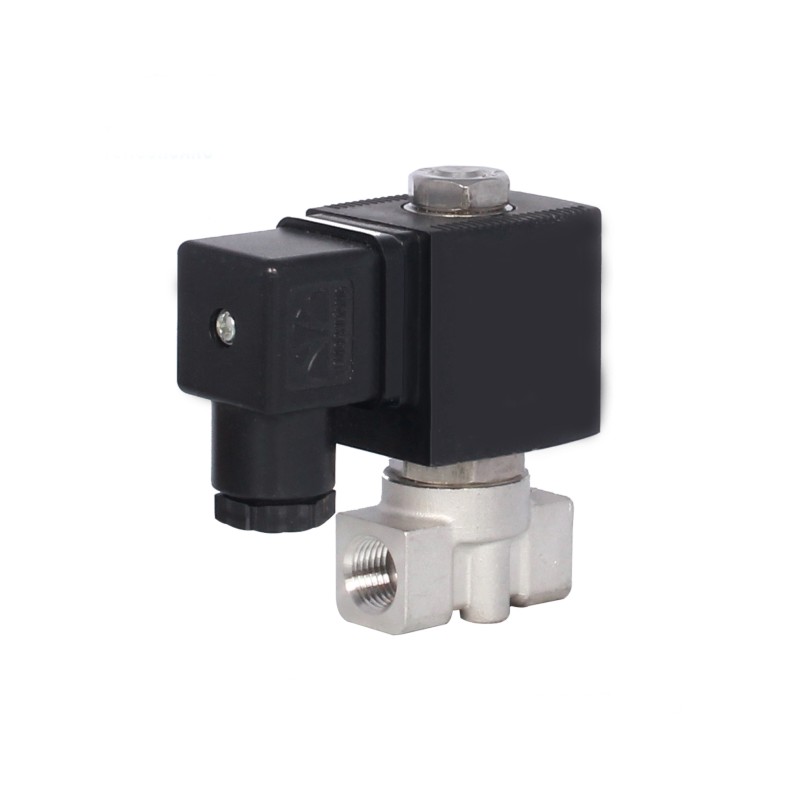

DLD Series Solenoid Valve

Direct Lifting Diaphragm(1/2"-2"(DN15-DN50)) 2Way NC

Characteristic:

1.Direct lifting diaphragm construction;

2.Open from zero bar for low pressure system use;

3.High frequency of flying lead coil.

Medium:Air,City Gas,Water,Oil,Petroleum,etc.

Temperature:NBR Seal:-10℃ to 80℃

Pressure:0~1Mpa

Port Size:1/2",3/4",1",1.25",1.5",2"

Port Thread:G,BSP,NPT

Orifice(mm):15,20.25,32,40,50

Voltage:DC-12V,24V

AC-24V, 120V,240V/60Hz; 110V,220V/50Hz

Tolerance:±10%

Coils:S51B:30VA(AC),24W(DC),IP65,100%ED

SD01B:28S(AC),36W(DC),IP65,100%ED

Material:

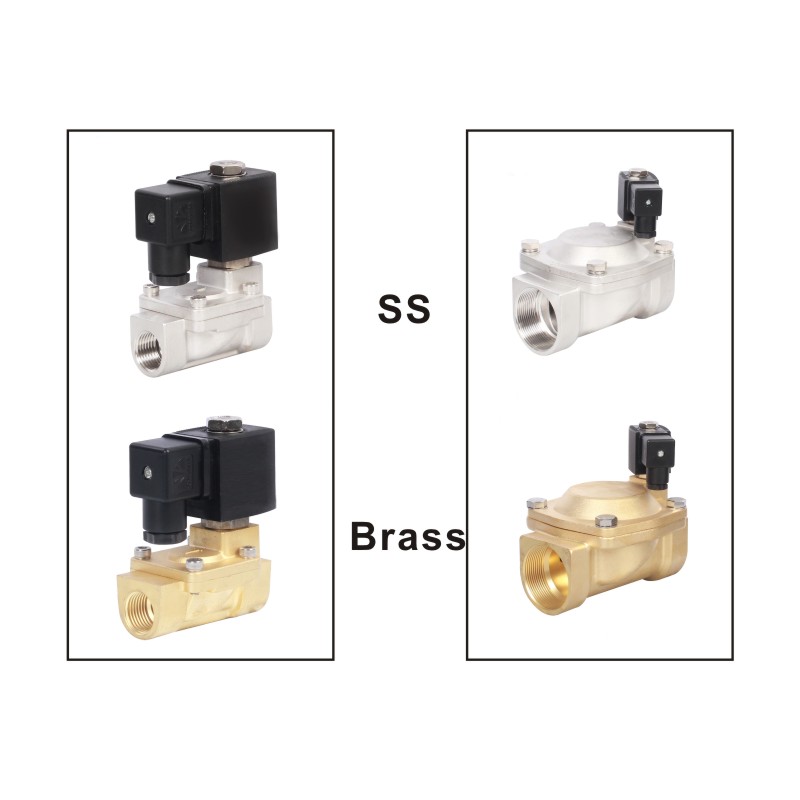

Body--Brass or Stainless Steel

Seal--NBR

Armature Tube--Stainless Steel 304

Plunger--Stainless Steel 430F

Stop--Stainless Steel 430F

Springs--SS 304

Shading Rings-- Copper

Dimension(mm) for DLD Series

DLD Normally Closed, with Coil S91B/SD01B
