DPO Series Solenoid Valve

Diaphragm Pilot Operated 1/2"-6" 2Way NC/NO

Characteristic:

1.Pilot operated diaphragm construction with less power consumption for longtime working;

2.Applied to pressure system opened from 0.3Bar;

3.Lifespan can beat million cycles.

Medium:Air,Water,Oil,etc.

Temperature:NBR Seal:-10℃ to 80℃

Pressure:0.03~1.0Mpa NC

Port Size:1/2",3/4",1",1 1/4",1 1/2",2",F2.5",F3",F4",F5",F6"

Port Thread:G,BSP,NPT,FLANGE

Orifice(mm):15,20.25,32,40,50,65,80,100,125,150

Voltage:DC-12V,24V

AC-24V, 120V,240V/60Hz; 110V,220V/50Hz

Tolerance:±10%

Coils:S91B:22VA(AC),17W(DC),IP65,100%ED

Special coils:EX coil AC 220V,DC 24V

Latching coil.DC 6~12V on request;

NASS Coil 0543 is suitable for DPO Model-Brass

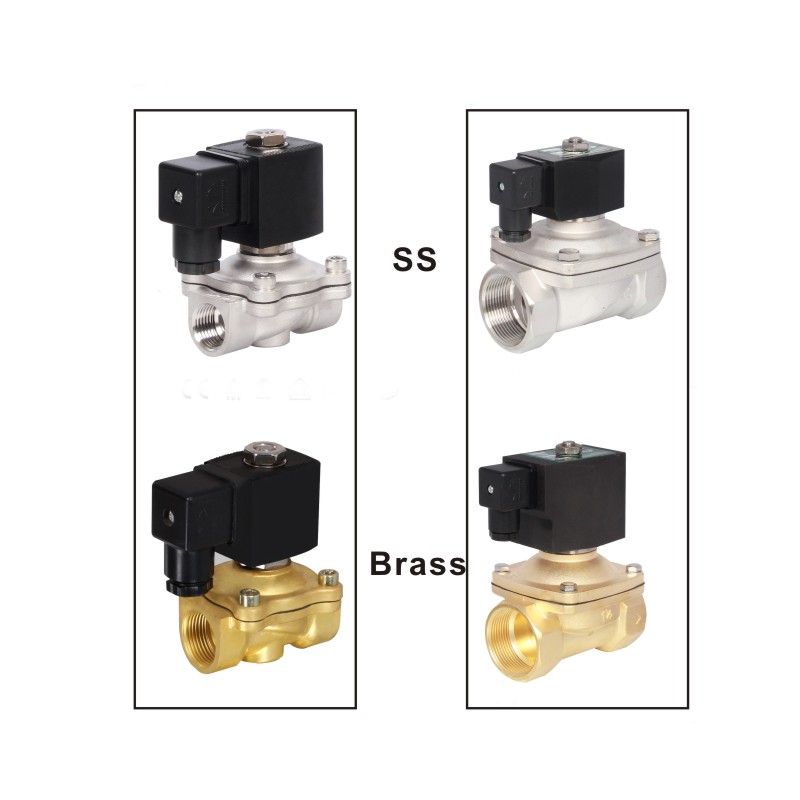

Material:

Body--Brass or Stainless Steel

Seal-NBR

Armature Tube--Stainless Steel 304

Plunger--Stainless Steel 430F

Stop--Stainless Steel 430F

Springs--SS 304

Shading Rings-- Copper

Dimension(mm) for DPO Series NC

DPO Normally Closed, with Coil S91B
